UNIVERSAL MODULE MOUNTING TRAY KIT FOR SV-HDX1100

Placeholder
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails

The Universal Module Mounting Tray Kit provides builders with a quick and simple method for mounting many of the commonly used SkyView electronic modules right behind the SkyView 10” display and the instrument panel.

This location places the equipment close to the power distribution busses and the pitot-static plumbing, making new installations and the retrofit installations into your airplane quick and easy. Maintenance access is also quick and easy, as every module is easily accessible through the display unit’s instrument panel opening after the display is removed.

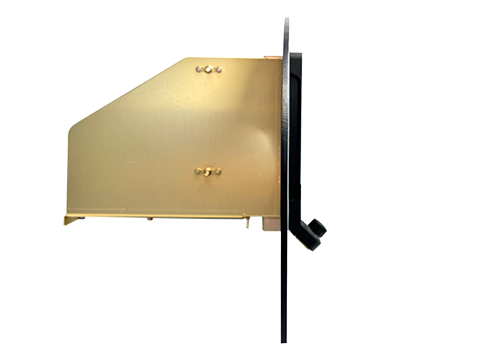

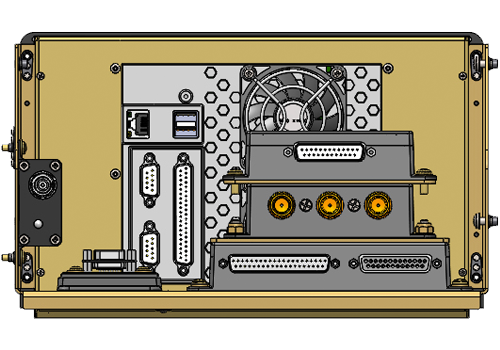

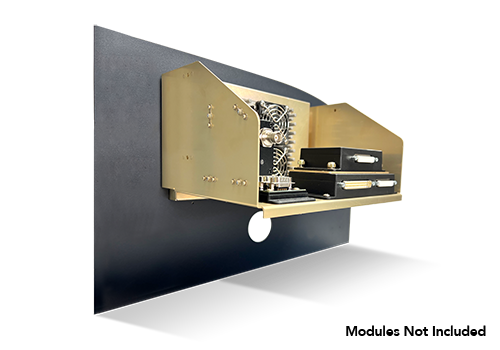

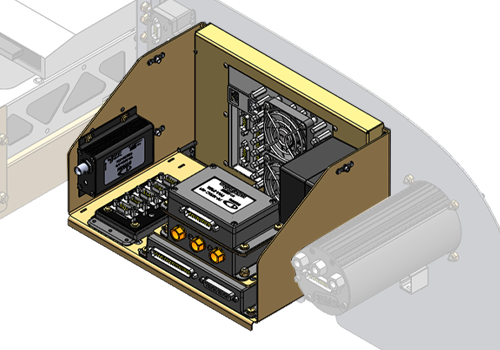

This kit provides the gold alodined aluminum Module Mounting Tray, the hardware necessary to install it permanently to the instrument panel, and hardware to fasten the electronic modules that mount directly to it. The tray features nutplates for mounting the SV-HDX1100 Display Unit, the SV-BAT-320 Back-Up battery, the SV-ADSB-472 ADS-B IN receiver, the SV-NET-HUB Network Hub, and the SV-EMS-220 Engine Monitoring System module, or the SV-ADAHRS-200 ADAHRS module (if EMS is not desired) directly to the tray. Simply mount this tray to the back side of your instrument panel with four rivets, then mount the modules using the provided hardware, and pre-installed nutplates. Even the display is mounted to the tray system using pre-installed nutplates.

Additional modules can be stacked upon the SV-EMS-220 Engine Monitoring System module or the SV-ADAHRS-200 ADAHRS module using the EMS to ADAHRS/ARINC Module Stacking Kit and/or the ADAHRS to ADAHRS/ARINC Module Stacking Kit as appropriate. Stacking modules in this way means that the Universal Module Mounting Tray provides space for mounting nearly every system module you may desire.

Note: This product is for the tray kit only. For the package that includes avionics modules and cables included, see the FastTrack Essentials Packages.

Compatible with SkyView HDX only. Not compatible with SkyView Classic, Touch, or SE.


$95.00


BUY NOW



Additional Information

Additional Information

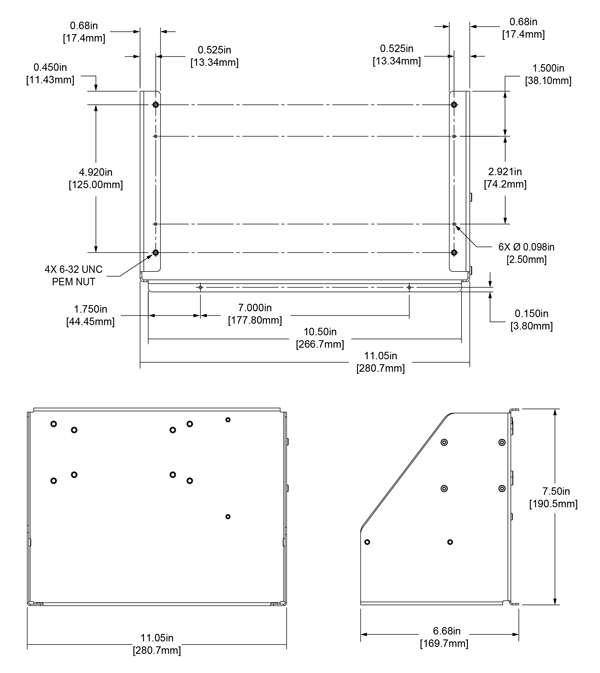

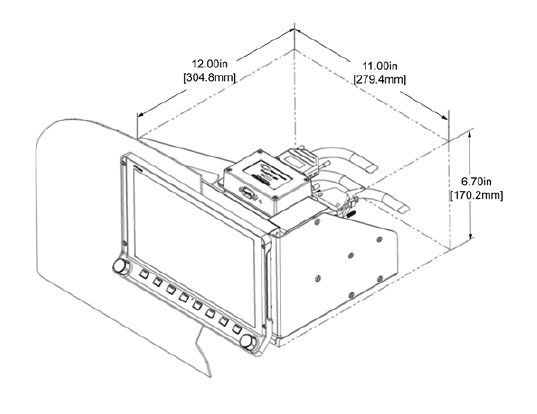

This tray is considered “universal” because it is as small as it can possibly be while still providing room for the modules and network hub. Therefore, it is expected to fit as many aircraft models. To be certain that this will fit in your airplane, consider the volume dimensions shown in the figures below. The 12 inch depth takes into consideration the connectors and the desired minimum bend radius of the wiring harnesses that project out the forward sides of the modules.

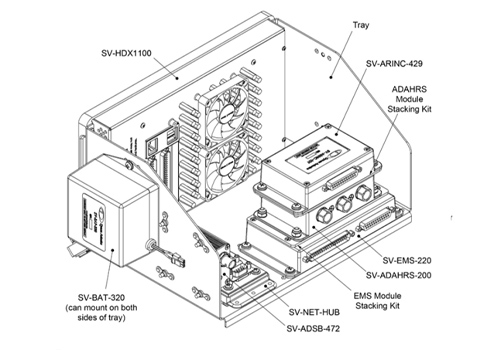

The Universal Module Mounting Tray Kit for SV-HDX1100 is intended to work in concert with the ADAHRS to ADAHRS/ARINC Module Stacking Kit in combination with the EMS to ADAHRS/ARINC Module Stacking Kit, so the following avionics modules can be mounted upon the tray and each other, providing that the EMS module, if installed, is located on the bottom of the stack as shown:
  • 1 each SV-EMS-220 module,
  • 1 each SV-EMS-200, SV-EMS-200, or SV-ARINC-429
  • 1 each SV-EMS-200, SV-EMS-200, or SV-ARINC-429

ADAHRS Mounting Notes

ADAHRS Mounting Notes

Although the Universal Module Mounting Tray for SV-HDX1100 can accommodate SkyView ADAHRS modules, many installers will mount ADAHRS modules elsewhere in the aircraft due to the following:
  1. Installing an ADAHRS module using the Universal Module Mounting Tray will require installing an SV-MAG-236 Remote Magnetometer elsewhere in the aircraft because there will be too much electromagnetic interference in the area for adequate magnetic heading sensing performance.
  2. An ADAHRS module must be mounted within one degree of parallel to all three aircraft axes. This may not be possible in aircraft where the panel has tilt relative to the pitch axis of the aircraft.
  3. Some homebuilt aircraft instrument panels are subject to significant vibration because they are close to the engine. Vibration can adversely impact an ADAHRS module’s performance.
Refer to the SV-ADAHRS-220/221 Installation and Configuration section of the SkyView System Installation Guide for additional guidance on mounting an ADAHRS module.
