FastTrack Wire Harnesses

Save Time and Eliminate the Possibility of Wiring Errors

Dynon’s prefabricated wiring harnesses connect SkyView modules and accessories to the system using color coded aviation grade Tefzel® wire to simplify installation. These harnesses are manufactured by Dynon to exacting standards and are functionally tested to eliminate any risk of wiring errors.

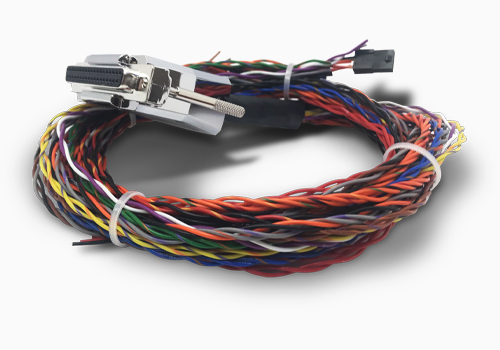

SkyView Display Harness

The SkyView Display Harness features a fully terminated 37 pin D-sub connector at one end that mates with the main connector on the back of the SkyView display. This harness provides all the color-coded aviation grade Tefzel® wire for every input and output signal with exception of the SkyView network. They are compatible with all SkyView displays.

SV-HARNESS-D37$124 BUY NOW

Autopilot Servo Harness Kit

The Autopilot Servo Harness Kit is made exclusively with color coded aviation grade Tefzel® wire. It is 20 feet long, and features two pairs of twisted 22 gauge network wires, one 22 gauge autopilot disconnect wire, and two 20 gauge wires for power and ground. Also included are three D9 connectors (one male, two females), 18 pins, a pin insertion tool, shrink tubing, and tie wraps. One kit is required for each servo.

SV-NET-SERVO$80 BUY NOW

Transponder Harness Kit

The Transponder Harness Kit contains color-coded aviation grade Tefzel® wire, one male D25 connector, 11 pins, and a pin insertion tool- everything needed to mate with and operate the SV-XPNDR-261/262 Transponders.

SV-HARNESS-XPNDR$75 BUY NOW


ADS-B Receiver Harness Kit

The ADS-B Receiver Harness Kit contains color-coded aviation grade Tefzel® wire, DB9 male connector, 11 pins, and a pin insertion tool- everything needed to mate with and operate the SV-ADSB-472 ADS-B Receiver.

SV-HARNESS-ADSB$65 BUY NOW

Intercom Harness

A complete audio harness solution for connecting the SkyView Intercom with the SkyView COM radio, SkyView displays, your headsets, stereo music, and other audio inputs. This kit comes complete with labeled aviation grade shielded and anti-chafe PVC jacketed cable and a fully assembled D25 female connector complete with terminated shields and Tefzel® socket-terminated wire.

102791-000$240 BUY NOW



Additional Information

Additional Information

Note: The SV-NET-SERVO has seven wires, and the power and ground wires are a larger gauge to carry the larger current requirements of the servos.)
